Plumbing Pipes Exporter

Plumbing Pipes Exporter

Product Details:

  • Type Threaded
  • Shape Round
  • Supply Ability : 1 Piece Per Day
82.00 - 88.00 INR/Meter
X

Price And Quantity

  • 500 Piece
  • 82.00 - 88.00 INR/Meter

Product Specifications

  • Round
  • Threaded

Trade Information

  • 1 Piece Per Day
  • 1 Week

Product Description

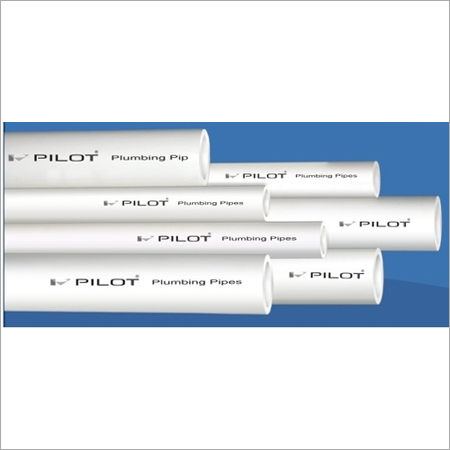

Plumbing Pipes Exporter

Fostered with immense years of industry experience and market knowledge, we are involved in manufacturing, exporting and supplying a wide range of Plumbing Pipes. As the name implies, offered pipes find their best application in plumbing and drainage applications. We manufacture these pipes with the aid of cutting-edge techniques using optimal grade raw material in adherence with predefined industrial quality norms. Further, we provide these Plumbing Pipes in diverse sizes as per the specific needs of the clients.

Features:

  •     Strong & durable

  •     Resistance to corrosion

  •     Low friction losses

  •     Highly hygienic & non toxic

  •     Easy installation & handling

  •     Light weight, no leakage & no maintenance for long time.

  •     Impact resistance

  •     No bacterial & fungal growth

  •     Excellent chemical resistance


Specification:


    Properties remain unchanged up to temperature 60.c continuous flow.

    Size 20mm (½") to 75mm (2½") are available in SCH-40, SCH-80 & SCH-120.

    As Per ASTM D 1785.

Application:

  •     Building Construction:

  •     To Provide water Connections for bathrooms, kitchens, sinks & laboratories etc.

  •     Portable Water Supply:

  •     Water supply & distribution in complexes, houses, flats, offices and hotels etc.

  •     Industrial Applications:

  •     Distribution of milk, chemicals, gases in dairies plants and industrial estates.

  •     In agriculture, telecommunication, irrigation projects etc.

    Plumbing pipe Size and Specification.



    Schedule – 40 Schedule – 80 Schedule – 120
    Nominal Size (inch) Outer Diameter (mm) Wall thickness Working Pressure Wt. Kg. Wall thickness Working Pressure Wt. Kg. Wall thickness Working Pressure Wt. Kg.
    (mm) (Mpa) 6Mtr (mm) Mpa 6 Mtr. (mm) Mpa 6 Mtr.
    ½ 21.34 2.77 4.14 1.5 3.73 5.58 1.9 4.32 6.96 2.1
    (+ -) 0.10 (+0.51) (+0.51) (+0.51)
    ¾ 26.67 2.87 3.31 1.9 3.91 4.76 2.7 4.32 5.31 2.9
    (+ - ) 0.51 (+0.51) (+0.51) (+0.51)
    1 3.38 3.38 3.10 3 4.55 4.34 3.8 5.08 4.96 4.2
    (+ -) 0.51 (+0.51) (+0.51) (+0.51)
    1 ¼ 3.56 3.56 2.55 4.2 4.85 3.59 5.4 5.4 4.14 5.9
    (+ -) 0.51 (+0.51) (+0.51) (+0.51)
    1 ½ 3.68 3.68 2.28 5 5.08 3.24 6.6 5.72 3.72 7.2
    (+ -) 0.51 (+0.51) (+0.51) (+0.51)
    2 3.91 3.91 1.93 6.6 5.54 2.76 9 6.35 3.24 10.2
    (+ -) 0.51 (+0.51) (+0.51) (+0.51)
