Product Code : Product Code - PP5
Brand Name : Pilot Pipes
Product Description

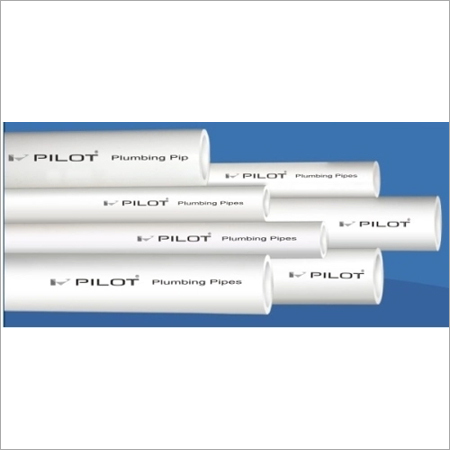

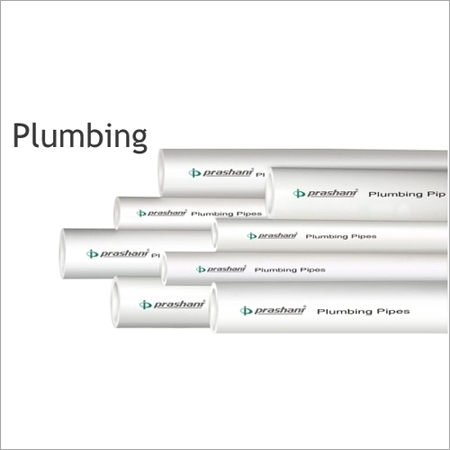

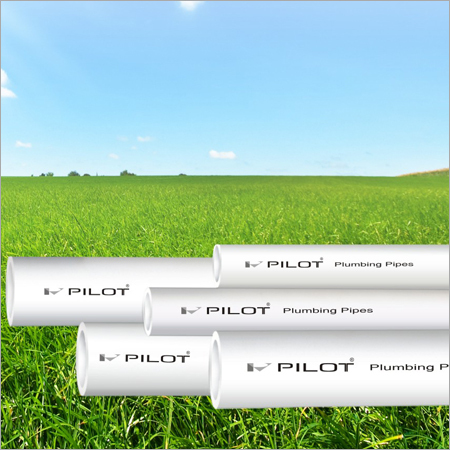

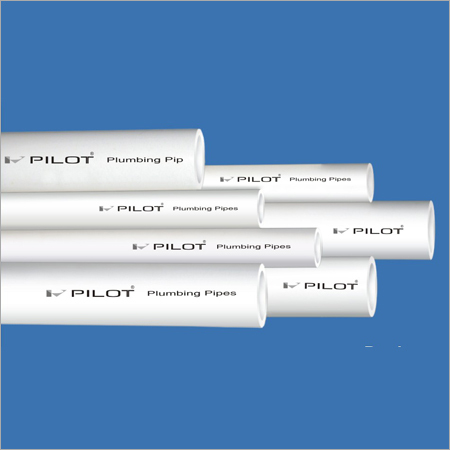

UPVC Plumbing Pipes

We have marked a distinguished position in the market by manufacturing, exporting and supplying a broad array of UPVC plumbing pipes. Offered pipes are efficiently manufactured using the finest quality unplasticized polyvinyl chloride with the help of ultra-modern techniques in sync with predefined industry norms. These pipes are best suited for plumbing, cabling wires, irrigation and many more. In addition, these UPVC plumbing pipes can be availed from us in numerous dimensions and at pocket friendly rates.

Features:

  • Robust built

  • Resistant to crack

  • Easy to install

  • Excellent strength

    Plumbing pipe Size and Specification.



    Schedule – 40 Schedule – 80 Schedule – 120
    Nominal Size (inch) Outer Diameter (mm) Wall thickness Working Pressure Wt. Kg. Wall thickness Working Pressure Wt. Kg. Wall thickness Working Pressure Wt. Kg.
    (mm) (Mpa) 6Mtr (mm) Mpa 6 Mtr. (mm) Mpa 6 Mtr.
    ½ 21.34 2.77 4.14 1.5 3.73 5.58 1.9 4.32 6.96 2.1
    (+ -) 0.10 (+0.51) (+0.51) (+0.51)
    ¾ 26.67 2.87 3.31 1.9 3.91 4.76 2.7 4.32 5.31 2.9
    (+ - ) 0.51 (+0.51) (+0.51) (+0.51)
    1 3.38 3.38 3.10 3 4.55 4.34 3.8 5.08 4.96 4.2
    (+ -) 0.51 (+0.51) (+0.51) (+0.51)
    1 ¼ 3.56 3.56 2.55 4.2 4.85 3.59 5.4 5.4 4.14 5.9
    (+ -) 0.51 (+0.51) (+0.51) (+0.51)
    1 ½ 3.68 3.68 2.28 5 5.08 3.24 6.6 5.72 3.72 7.2
    (+ -) 0.51 (+0.51) (+0.51) (+0.51)
    2 3.91 3.91 1.93 6.6 5.54 2.76 9 6.35 3.24 10.2
    (+ -) 0.51 (+0.51) (+0.51) (+0.51)
